Digidesign Digi002 Brand-New + ProTools Tools LE 6.7

	A$		2,950
	$		2,252





Digidesign Digi002 Brand-New + ProTools Tools LE 6.7



This item is new, boxed, unused, unopened  and unregistered.  All items are sealed and in original condition with the latest software.

(Large amount of Digidesign bundled software is listed below)

If you're are bidding on one of these 002's you probably know a fair amount about this kind of equipment.
I've listed some spec's below; but for heaps of good info goto:
http://www.digidesign.com/index.cfm?body=/products/digi002



Introduction:
Digi 002 — FireWire-based Pro Tools LE music production system

Working with your computer through a single FireWire connection, Digi 002 pairs Pro Tools LE software with an integrated control surface to provide you with an ideal, finger-friendly music production environment. Record, edit, process, mix and master your projects with hands-on efficiency, then tuck Digi 002 under your arm, take it to a gig, and use it as an 8x4x2 digital mixer complete with EQ, dynamics, delay, and reverb with snapshots. Experience the power of Pro Tools in an all-in-one solution.

Main Features:
Complementing the intuitive, comprehensive software components of Digi 002 is a unique and innovative hardware configuration that provides access to inputs and outputs, visual indicators, and tactile controls via the integrated control surface. Once you've routed your audio and MIDI signals via Digi 002's I/O, and created a session to build and manage your project, you are in an ideal position to create from beginning to end in a fully self-contained environment. Together, Digi 002's hardware and software interact seamlessly, offering you all the power and flexibility of a Pro Tools workstation in a brand new, results-oriented mini studio that fits under your arm.

• FireWire connectivity (no PCI card required)
• 8 touch-sensitive, motorized faders
• 8 motion-sensitive rotary encoders used for pan/send/meter/plug-in control
• 10 scribble strips for track name, pan, send, fader, plug-in values, and timeline position
• 8 analog inputs, 8 analog outputs
• 4 mic pres with individual gain and high-pass filter; 48V phantom power enabled on channel pairs
• 8 channels of ADAT optical I/O, 2 channels of S/PDIF I/O
• Outputs 1 & 2 mirrored on 1/4" TRS monitor output (with dedicated volume control) and RCA-based -10 dBV fixed output
• MIDI I/O: 1 IN port, 2 OUT ports (16 channels IN/32 channels OUT)
• 24-bit/96 kHz A/D and D/A converters
• Stand-alone mode: 8x4x2 digital mixer with EQ, dynamics, effects
• Alternate Source Input for direct monitoring of -10 dBV audio equipment (tape players, CD players, etc.)
• Headphone output with dedicated volume control knob included
• Transport control

Digi 002 Software Features

Audio
Digi 002's Pro Tools LE software enables you to record and play back up to 32 tracks of audio at sample rates of up to 96 kHz. As soon as your audio enters Pro Tools, it enjoys a 24-bit signal path. Coming or going, the sound involved with your sessions also benefits from high-quality signal converters (A/D and D/A), ensuring the quality of your signals. Of course, Pro Tools enables you to determine the quality of your audio as needs demand — you can always determine the bit rate and sample resolution of a given session in advance. But, it's always nice to know that you have the option of high-end fidelity at your disposal.

Mixing
With Digi 002, we've made mixing extremely easy on your eyes, ears, and hands. You can use either Digi 002's integrated control surface or the Pro Tools LE software interface to tweak every component of your mix. They share information, so what you do on one is instantly reflected on the other. As your computer's processor transparently crunches mixing data, you guide the mixing process via either the intuitive Pro Tools LE user interface or the Digi 002 control surface, or both. However you choose to operate, Digi 002 and Pro Tools LE software present you with a variety of methods to control and automate your mix, all within a non-destructive, recovery-friendly environment geared toward rapid, superior results.

MIDI
Similar to its audio features and capabilities, Pro Tools LE's integrated MIDI environment gives you full control over the MIDI components of your projects. MIDI events and sequences can be manipulated as easily as audio, eliminating the need to learn yet another operational paradigm. Pro Tools LE supports the import, creation, and export of MIDI data, as well as extensive MIDI editing and manipulation capabilities. Additionally, compatibility with popular MIDI-centric applications such as Emagic's Logic Audio allows you to work in a hybrid environment, if you wish.

Editing
Pro Tools' editing capabilities are such that they have become the standard by which all competitors' efforts are judged. This phenomenon has everything to do with two factors: ease of use and magnitude of scope. Just as with Pro Tools TDM software, a single screen within the Pro Tools LE interface — the Edit Window — enables you to adjust literally every aspect of both audio and MIDI data at sample-level resolution. Trim waveforms, reprocess regions of audio, pitch-correct a compromised performance, replace drum sounds, rearrange song sections on a whim; Pro Tools' non-linear approach to editing enables you to act instantly on your decisions without having to commit to them. And with tools like SoundReplacer available for the Pro Tools LE application, there's always a tool available to improve or perfect performances.

Plug-Ins
Plug-ins, add-on software-based tools that work in conjunction with Pro Tools LE, are paramount to the effectiveness of the platform. Plug-ins facilitate and embody everything from dynamics to effects to sound design, often improving upon the hardware counterparts and equivalents that many emulate. To use plug-ins, you simply instantiate (or activate) them within the Pro Tools interface. At that point, you are free to employ presets, customize settings, and/or automate a given plug-in's activity within a mix. Unlike outboard gear, you can use your plug-ins on multiple tracks, with multiple settings.

Pro Tools LE-compatible plug-ins take two forms: RTAS and AudioSuite. RTAS (Real-Time AudioSuite) plug-ins afford you all the benefits of real-time processing and can be assigned to multiple tracks as frequently as you like within the limits of your system. AudioSuite plug-ins are non-real time, and once applied to your audio, result in the generation of a new audio file with the processing intact. Of course, you also have the option of saving your original file. There are practical benefits to the use of both types of plug-ins; see the Digidesign Online Catalog for detailed information on individual plug-ins.

Mastering
In addition to providing an ideal recording, editing, and mixing environment, Digi 002 also affords you the opportunity to add the finishing touches to your projects through mastering. Editing capabilities and plug-ins used in conjunction with the Pro Tools LE software interface enable you to make the necessary fine adjustments to your final mix to achieve the perfect combination of warmth, presence, and balance. Alternatively, there are many off-the-shelf options available for producing Red Book-compatible CDs from final Pro Tools mixes.

Additional Information:
Getting your Digi 002 system up and running involves a quick, simple, four-step process. First, you load your Pro Tools LE software onto your computer. Second, you connect your computer to the Digi 002 unit with the included FireWire cable (PC users will need to first purchase a compatible FireWire card). Third, you power up Digi 002. Fourth, you connect your signal sources — mics, instrument cables, patch cords, etc. — to the I/O on the back of Digi 002. Lastly, you launch Pro Tools LE software. At that point, you're ready to go. Your audio and MIDI information travel back and forth between your computer and Digi 002 via the FireWire cable, along with information generated by or returned to the Digi 002 control surface. Any changes you make via your Pro Tools software interface are reflected on the control surface and vice versa. It's that simple.

Digi 002 includes two modes of operation: Pro Tools mode, described above, and Standalone mode. With the push of a button, your Digi 002 unit enters Standalone mode and becomes an 8x2 digital mixer, complete with four effects sends (two internal, two external), EQ, dynamics, effects, and snapshots. Pro Tools LE is disabled in this mode, and your computer is no longer needed for Digi 002 to operate.

Powerhouse Plug-Ins
Digi 002 ships with Pro Tools LE software as well as bundled plug-ins, offering more power and flexibility than ever before including up to 32 tracks. The free bundled plug-ins* are valued at over $3,991 AUS and include:

• Amplitube by IK Multimedia
• D-Fi by Digidesign
• D-fx by Digidesign
• Maxim by Digidesign
• PR0-52 by Native Instruments
• Renaissance Collection by Waves
• SampleTank LE by IK Multimedia

<?XML:NAMESPACE PREFIX = V />





Bundled Software

Free Bomb Factory Plug-ins:

  Bomb Factory BF76 Compressor BF Essential Clip Remover BF Essential Correlation Meter BF Essential Meter Bridge BF Essential Noise Meter BF Essential Tuner Funk Logic Mastererizer Music Production Enhancement Suite:   Ableton Live Digidesign Edition Propellerhead Software Reason Adapted IK Multimedia SampleTank SE IK Multimedia Amplitube LE IK Multimedia T-RackS EQ   DigiRack Plug-ins   Chorus Click D-Verb D-Verb-AS DigiReWire Dither Dynamics II EQ II Flanger Invert/Duplicate Mod Delay II Multi-Tap Delay Normalize-Gain Change Ping-Pong Delay Reverse-DC Removal Signal Generator Time Comp-Exp-Pitch Shift Trim     Additional Digi 002 Plug-ins:

Digidesign Maxim
Digidesign D-Fi:

  Lo-Fi Sci-Fi Recti-Fi Vari-Fi <?xml:namespace prefix = o />

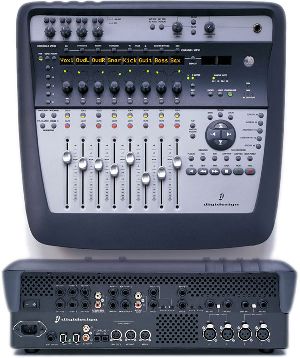

Click to Enlarge Image
Please note: Image is from promotional material, as the item is still unopened & sealed in its original new packing. (however this IS how the unit looks!)

Technical Specifications

A/D

Sample rate:
• 44.1, 48, 88.2, 96 kHz

Max Input:
• Inputs 1-4 (mic): +3 dBu
• Inputs 1-4 (line): +18 dBu
• Inputs 5-8 (line/+4 mode): +18 dBu

Gain Range:
• Inputs 1-4: Mic Setting: +18 — +65 dB; Line/DI Setting: +0 — +50 dB
• Inputs 5-8 — fixed +4 dBu or -10 dBV

Mic E.I.N (unweighted):
• Inputs 1-4: -127 dBu @ 65 dB gain, 150 ohm source, 20 Hz — 20 kHz

THD+N @ 40 dB gain (mic input) @ 1 kHz:
• Inputs 1-4: 0.004% @ 1kHz, -1dBFS after 40 dB gain

THD+N (line input): see notes 1 and 3
• Inputs 1-4: 0.004% @ -3 dBFS input level (minimum gain)
• Inputs 5-6: 0.002% @ -1 dBFS input level
• Inputs 7-8: 0.003% @ -1 dBFS input level

Dynamic range: see notes 1 and 2
• Inputs 1-4: 101 dB A-weighted, 98 dB (unweighted)
• Inputs 5-8: 108 dB A-weighted, 105 dB (unweighted) see note 5
• Alt Source Inputs: 99 dB A-weighted, 97 dB (unweighted)

Frequency Response: see note 3
• +0.15 / -0.5 dB, 20 Hz — 20 kHz

Input Impedance:
• Inputs 1-4 (XLR): 2 kohm
• Inputs 1-4 (1/4"): 10 Mohm

D/A

Sample Rate:
• 44.1, 48, 88.2, 96 kHz

Max Output:
• Main, Monitor, and Outputs 3-8: +18 dBu
• Alt. -10 dBV Outputs: +4 dBV
• Headphone Outputs: +15 dBu, 150 ohm load

Dynamic range: see notes 1, 3, and 4
• Main Outputs: 114 dB A-weighted, 112 dB (unweighted)
• Monitor Outputs: 112 dB A-weighted, 110 dB (unweighted)
• Outputs 3-8: 114 dB A-weighted, 112 dB (unweighted)
• Alt. -10 dBV Outputs: 98 dB A-weighted, 95 dB (unweighted)

THD+N: see notes 1, 3, and 4
• Main Outputs: <0.0016% (-95 dB)
• Monitor Outputs: <0.0016% (-95 dB)
• Outputs 3-8: <0.0023% (-93 dB)
• Alt. -10 dBV Outputs: <0.0023% (-93 dB)

Frequency Response: see note 3
• +0.15 / -0.5 dB, 20 Hz — 20 kHz

Output Impedance:
• 50 ohms

Note 1: Measurement made using balanced connectors
Note 2: ADC measured -60 dBFS method with a gain setting such that +24 dBu = 0 dBFS at S/PDIF output
Note 3: Measured relative to level at 1 kHz
Note 4: Measured with digital input at -60 dBFS @ 1 kHz
Note 5: Measured using "+4" setting

Dimensions:
• Width = 18.9 in /48.3 cm
• Diameter = 17.1 in /43.5 cm
• Height = 6.1 in /15.6 cm
• Weight = 15 lbs 3.2 oz /6.9 kg
• FireWire cable = 6-pin to 6-pin, 12 ft / 3.7 m



Requirements:
Windows PC
http://www.digidesign.com/compato/main002win.html

Macintosh
http://www.digidesign.com/compato/main002win.html





Freight Costs for Australia   (registered mail)
Enquire by email for other countries

Queensland $25.00 N.S.W. $20.00 Victoria $25.00 South Australia

$25.00

Western Australia

$30.00

Northern territory

$30.00

Tasmania

$25.00

Insurance Add $30.00



Terms & Conditions of Sale

Please do not bid unless you accept the Terms & Conditions (below)

Condition of Goods & Warranty

• All items are "sold as seen" and without warranty. In many cases manafacturer warranty still applies.
• Computer systems are sold without original software licenses & disks, in the condition we receive them (unless otherwise noted).
• If you are not sure about the item please email BEFORE you bid - we are happy to answer any questions.
• It is the buyers responsibility to ensure that the item is compatible.

Payment Terms, and Bidding

• Full payment must be received within 5 working days of the end of auction or the item will be re-listed & negative feedback given.
• Inform us of the amount transfered, receipt number, and date of the transaction. We will watch our account and send the goods immediatly the funds have cleared.
• All bids are binding. Bidding for this item means that you are willing to pay for it upon completion of the auction.

Postage & Packing

• Local collection is not permitted, in order to maintain Quality Control and timely despatch of orders.

Items will be shipped promptly. Without insurance (optional), we cannot be held responsible for lost, missing or damaged items. Any claims must be reported to me within 7 days of receipt.

By bidding you confirm acceptance of all of the above terms and conditions.

Thank you for looking at this item.
