Yamaha 01V Digital Mixing Console O1V with ADAT MY8-AT

	€		850
	$		988

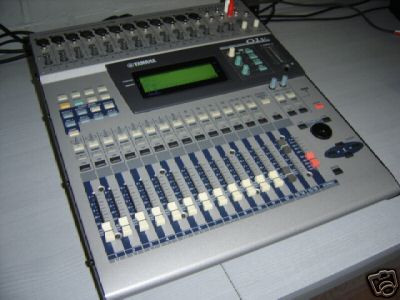

This auction is for Yamaha 01V Digital Mixing Console in Excellent condition AND the ADAT 8 inputs and 8 outputs MY8-AT option card.

Great 24 Channel mixing board in this setup. Full production capability.  See below.

01V Sonic Specs

• Linear 20-bit 128-times oversampling A/D converters
• Linear 20-bit 8-times oversampling D/A converters (STEREO OUT)
• 105 dB typical dynamic range (CH INPUT to STEREO OUT)
• 20 Hz–20 kHz (+1, –3 dB) frequency response
• 32-bit internal digital audio processing
• 44-bit digital EQ processing 01V Features
• 24 inputs (including 8 ADAT digital inputs)
• 14 outputs (STEREO OUT, OMNI OUTs, 8 assignable ADAT digital outputs)
• Continuously variable gain controls • Balanced XLRs with +48 V phantom powering (input channels 1 through 12)
• 26 dB pad (input channels 1 through 12)
• Balanced phone jack inputs (input channels 1 through 16)
• Four configurable analog Omni outs (AUX, BUS, CH DIRECT, STEREO)
• Option I/O slot for digital interface with 8-track digital multitrack recorders
• 8 assignable digital outputs from the Option I/O card (Tascam, ADAT, AES/EBU) INCLUDED!
• Coaxial-type digital input and output • Versatile solo modes for comprehensive monitoring
• 3 fader groups for multiple fader control
• 3 mute groups for multiple mute control
• 250 ms input delay (1–16) and 300 ms output delay (STEREO OUT, OMNI OUTs)
• Channel Copy function
• Stereo-pair operation for input channels, aux sends, and bus outs
• 100 scene memories for storing mix snapshots
• Four-band parametric EQ (2-band on Option I/O input channels)
• Powerful EQ library with 40 preset programs and 40 user programs
• Dedicated controls for EQ and pan
• Two stereo multi-effects processors onboard
• Powerful effects library with 42 preset programs and 57 user programs
• The equivalent of 22 dynamics processors onboard (compressor, gate, ducking,  expander, compander)
• Powerful dynamics library with 40 preset programs and 40 user programs
• 320 x 80 dot LCD display
• Comprehensive MIDI implementation (remote control, MMC, Bulk)
• Built-in MIDI interface and TO HOST port for quick and simple connection to a  personal computer
• 15 motorized 60 mm faders

01V Sonic Performance

The 01V’s linear 20-bit 128-times oversampling A/D converters provide a typical  dynamic range of 105 dB. The STEREO OUT features 20-bit 8-times oversampling  D/A converters, while the MONITOR OUT and OMNI OUTs feature 18-bit 8-times  oversampling D/A converters. Oversampling techniques effectively increase the internal sampling rate, so side effects caused by steep low-pass filters, used to filter out sampling frequency components during D/A conversion, are virtually eliminated.  Consequently, audio signal integrity is maintained from input through to output.  The 01V can generate the industry standard sampling rate of 44.1 kHz, or synchronize  to an external wordclock source from 44.1 kHz –10% to 48 kHz +6%.

Four-band Parametric EQ & Library

Input channels 1 through 16, the stereo output, aux sends, and effects returns all feature  four-band fully parametric EQ, with variable gain, frequency, Q, and bypass. Input  channels 17 through 24 feature a simplified two-band parametric EQ. High and low EQ  bands can be used as shelving, peaking, or HPF and LPF, respectively. See “EQ” on page  61 for more information. EQ settings can be stored in the EQ library as programs, or with all mix settings in mix  scenes. The EQ library consists of 40 preset programs and 40 user programs. User programs allow you to store frequently used EQ settings, which can be titled for easy identification. The unique collection of preset EQ programs are designed for specific  applications and instruments, and provide a good reference and starting point when  making EQ adjustments. See “EQ Library” on page 67 for more information.

Motorized Faders

The 01V features 15 motorized 60 mm faders that move automatically when a mix  scene is recalled, providing a clear and visual indication of fader levels. A fade time of  up to 25 seconds can be set for each mix scene individually. Faders can be grouped  together in one of three fader groups for multiple fader control. See “Grouping Faders”  on page 55 for more information. Faders on paired channels move simultaneously. See  “Pairing Input Channels” on page 52 for more information. 01V Faders are multifunction controls, and their exact operation depends on the  selected Fader mode. Input channel faders may be used as channel faders or aux or  effects send controls. The STEREO fader may be used as the stereo output fader or aux  or effects send master level faders. See “Fader Modes” on page 32 for more information. Faders 1 through 16 and master can be assigned to various internal parameters on  REMOTE page 1, or used as MIDI controllers on REMOTE page 3. See “Assigning Faders & On Buttons” on page 194 and “User Defined MIDI Controllers” on page 238 for  more information.

Onboard Effects Processors

The 01V has two stereo multi-effects processors onboard: Effect 1 and Effect 2. These  processors provide a wide range of quality effects, including reverb, delay, chorus,  flange, amp simulator, and more. There are 34 different effects types available. The  effects processors are fed by the Effect 1 and Effect 2 buses, and the processed signals are  returned through the effects return channels. Effects can be applied to input channels  1 through 24. Effects return 1 can be fed to Effect 2, and Effects return 2 can be fed to  Effect 1. Effects settings can be stored in the effects library as programs, or with all mix settings  in mix scenes. The effect library consists of 42 preset programs and 57 user programs.  User programs allow you to store your own effects programs, which can be titled for  easy identification. See “Effects Library” on page 132 for more information.  External effects processors can be patched into the 01V using the aux sends.

Onboard Dynamics Processors

Dynamics processors, providing compressor, gate, ducking, expander, and compander,  are available on input channels 1 through 16, the stereo output, and the aux sends.  That’s equivalent to 22 dynamics processors! Dynamics processors can be self triggering  (i.e., the signal being processed is used as the trigger signal), or triggered by a signal  from another channel. Dynamics settings can be stored in the dynamics library as programs, or with all mix  settings in mix scenes. The dynamics library consists of 40 preset programs and 40 user  programs. User programs allow you to store your own dynamics programs, which can  be titled for easy identification. See “Dynamics Library” on page 173 for more information.

Option I/O & Digital I/O

The 01V features a single slot for an optional Option I/O card, providing eight digital  inputs (input channels 17 through 24) and eight assignable digital outputs. Option I/O  provides a direct digital connection to modular digital multitrack recorders, with cards  for the following formats: ADAT, Tascam, and AES/EBU. An Option I/O card offering  four analog outputs is also available. See “About Option I/O Cards” on page 216 for  more information. 01V Option I/O cards are not interchangeable with the YGDAI  cards used by the Yamaha 02R and 03D Digital Recording Consoles, such as the  CD8-AT. The Coaxial DIGITAL STEREO IN and OUT allow direct connection to stereo digital  recorders and other digital equipment. Digital stereo signals can be routed to the Stereo  bus for cascade operation, or to input channels 13/14 for mixing and processing. See  “Digital Stereo In” on page 213 for more information.

Scene Memories

On many mixers, the only way to store mix settings is with marker pen and masking  tape. With the 01V, however, virtually every mix setting can be stored in a mix scene  using the 01V’s 99 scene memories. Mix scenes can be recalled instantly with just one  button press, or remotely using MIDI Program Change commands. If you work on several projects at a time, you can store the current mix scene so when you return to that  project, you can start again right where you left off. Scene memories also make light  work of night-after-night sound checks. Simply press recall to return to the previous  night’s mix settings. For theater work, scene memories allow accurate and repeatable  sound changes between scenes.

MIDI

In addition to regular MIDI ports, the 01V features a TO HOST port that allows the  01V to be connected directly to a personal computer without a MIDI interface. MIDI Program Change messages can be used to recall mix scenes, and mix parameters  can be assigned to MIDI Control Change messages for real-time remote control. Mix  parameters that can be stored in mix scenes can be controlled remotely using MIDI System Exclusive messages. Scene memory, library, and setup data can be transferred to a  MIDI data filer, computer, or another 01V for backup and archive using MIDI Bulk  Dump. See “MIDI” on page 221 for more information. When REMOTE page 2 is displayed, the 01V’s [SEL] and [ON] buttons can be used to  control recorders that support MMC (MIDI Machine Control) commands (stop, play,  rewind, forward, and record). When REMOTE page 3 is displayed, faders, [SOLO] &  [ON] buttons function as assignable MIDI Controllers.
