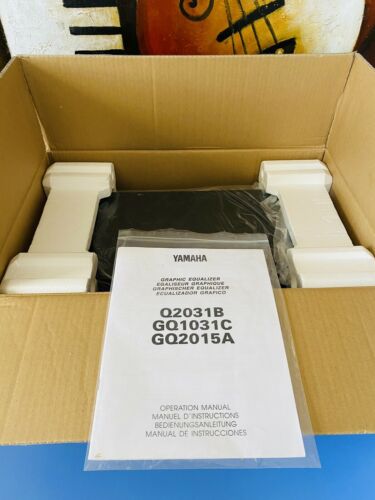

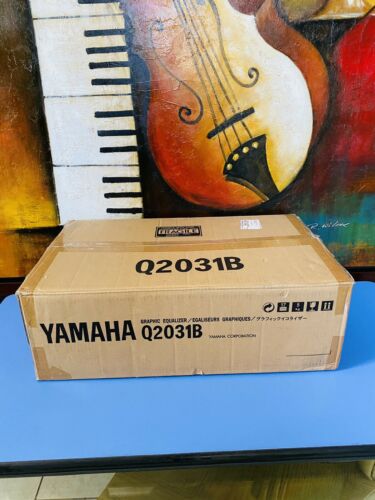

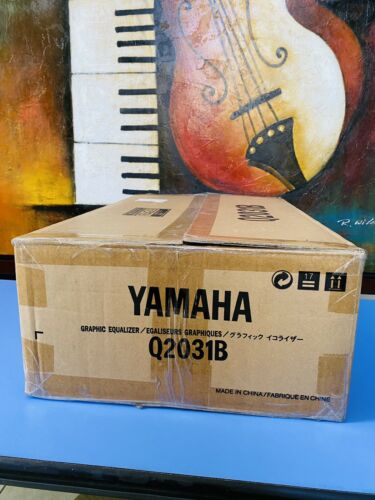

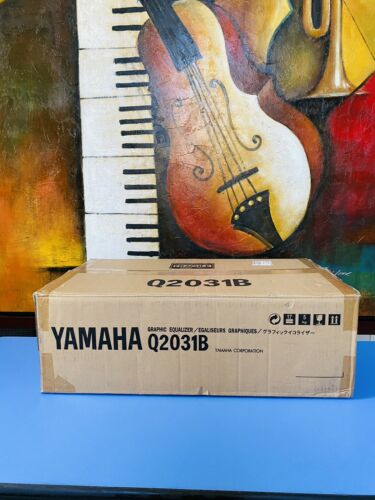

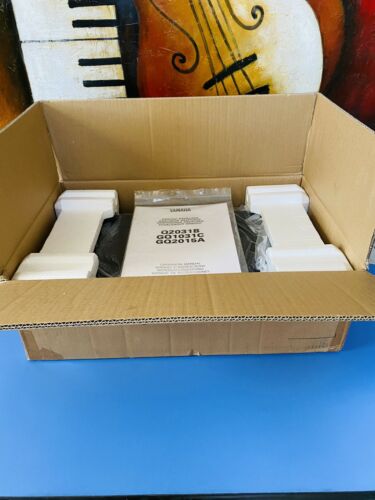

YAMAHA Q2031B Graphic Equalizer open box
$
500
Favourite Auctions
To save auctions to your favourites, please login
If you don't have an account, please register
Description
Q2031B
GENERAL SPECIFICATIONS
ANALOG INPUT SPECIFICATIONS
Total harmonic distortion Frequency response
Buzzer and noise level
(20Hz to 20kHz), Rs = 150? Center frequency
Level control
Filter
Power requirements
Power consumption Dimensions (W x H x D) Weight
DIMENSIONS
Less than 0.05% (@ + 4dB 600? EQ = FLAT) 20Hz to 20kHz + 0.5dB, -0.5dB (@ + 4dBu 600?) -96dBu (EQ = ALL FLAT INPUT LEVEL MAX)
20Hz to 20kHz (1/3 Oct 31band)
+/- 12dB / +/- 6dB (selectable)
HPF = -12dB / Oct 20Hz to 200Hz variable AC100V, 50 / 60Hz
AC120V, 60Hz
AC230V, 50Hz
20W
480 x 88 x 230 mm (18.7 "x 3.4" x 9 "), 2U 4.0 kg (8.8 lb)
480
INPUT (A, B)
15k? 600? Lines
+ 4dBu
+ 4dBu
+ 24dBu XLR-3-31 type * TRS telephone connector *
Terminal Actual load for sensitive use Maximum level Connector impedance Nominal before clip
ANALOG OUTPUT SPECIFICATIONS
Terminal Actual load for sensitive use Maximum level Connector impedance Nominal before clip
OUTPUT (A, B)
150k? 600? Lines
+ 24dBu
Type XLR-3-32 * TRS telephone connector * yamaha graphic equalizer. Shipped with USPS Media Mail.
