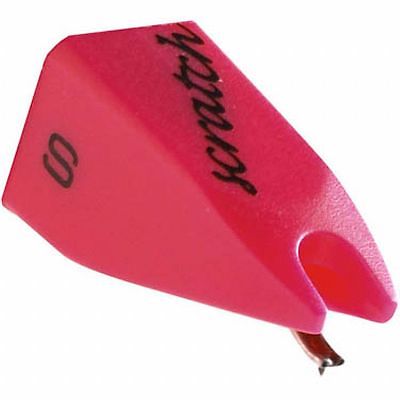

Ortofon Stylus Scratch Replacement Stylus - Pink
  $   38




$ 38 Sold For
Apr 30, 2017 Sold Date
Aug 3, 2016 Start Date
1 Number Of Bids
  USA Country Of Seller
eBay Sold at

save auction

Description

Ortofon Stylus Scratch Replacement Stylus - Pink The Scratch Replacement Stylus is a genuine replacement part for Ortofon Scratch series cartridges. Technical Specification Output voltage at 1000Hz, 5cm/sec. 7 mV Channel balance at 1kHz 1.5 dB Channel separation at 1kHz 25 dB Channel separation at 15 kHz 15 dB Frequency range at -3dB 20-22,000 Hz Frequency response 20-15,000 Hz +3dB/-2dB Tracking ability at 315 Hz at recommended tracking force 80 ?m Compliance, dynamic lateral 6 ?m/mN Stylus type Spherical Stylus tip radius R 18 ?m Tracking force range 3.0-5.0 g (30-50 mN) Tracking force recommended 4.0g (40 mN) Tracking angle 20° Internal impedance, DC resistance 750 Ohm Internal inductance 450 mH Recommended load resistance 47 kOhm Recommended load capacitance 200-600 pF Cartridge weight 18.5 g Replacement stylus unit Scratch
